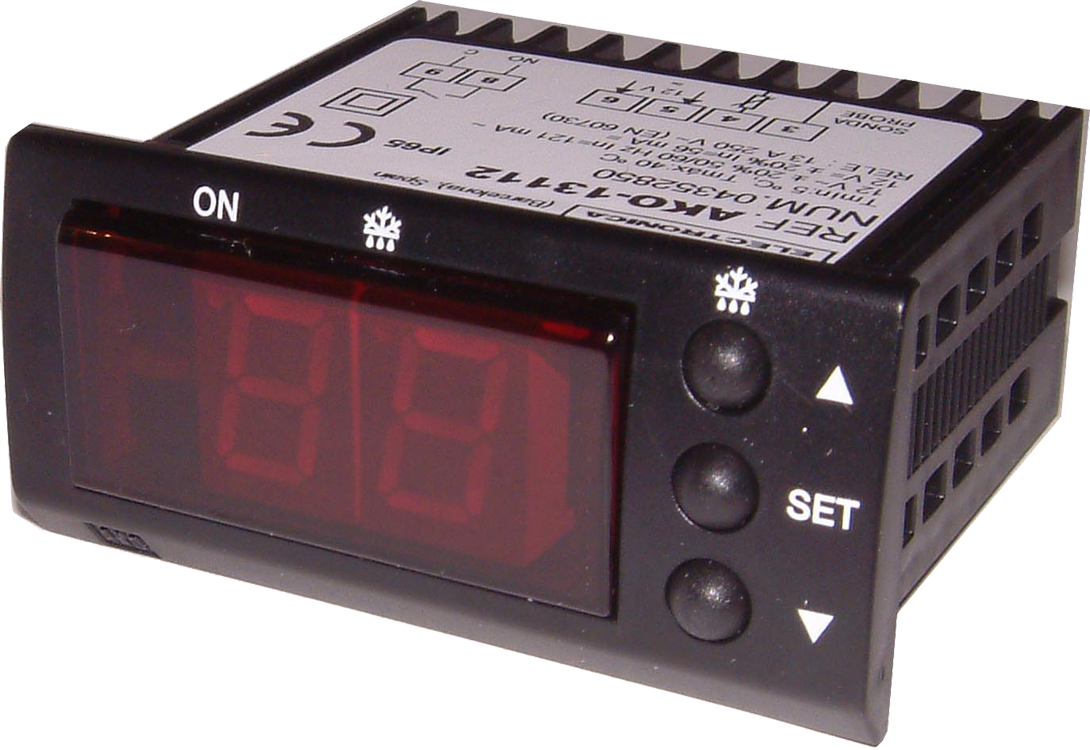

AKO-13112 12V Single stage thermostat for heating or cooling

General Description

The AKO-13112 is a small size (32x66) single set point digital thermostat for control of temperature in heating, cooling or refrigeration applications where only space is tight. It has similar functions to the larger AKO-141xx series.
It can be used to control heaters, chillers, fans, pumps, bottle coolers, fridges, display cabinets, heated food trolley etc. For refrigeration applications, it has off cycle defrosting.

Sensor
An ntc thermistor sensor on a 1.5m lead is supplied with an operating range of -50.0/99.9 Deg.C or with a Ptc sensor, upto 150 Deg.C.
With adjustable hysterisis. and scale in C or F, the result is a versatile accurate thermostat.

Size
Standard 32 x 66mm front panel mounting with IP65 gasket. It's bright display makes for easy reading.

Electrical
The AKO-13112 is for 12V, alternative for 120 VAC see AKO-13120 and 230V see AKO-13123.
Relay output is 13 Amp single pole.
