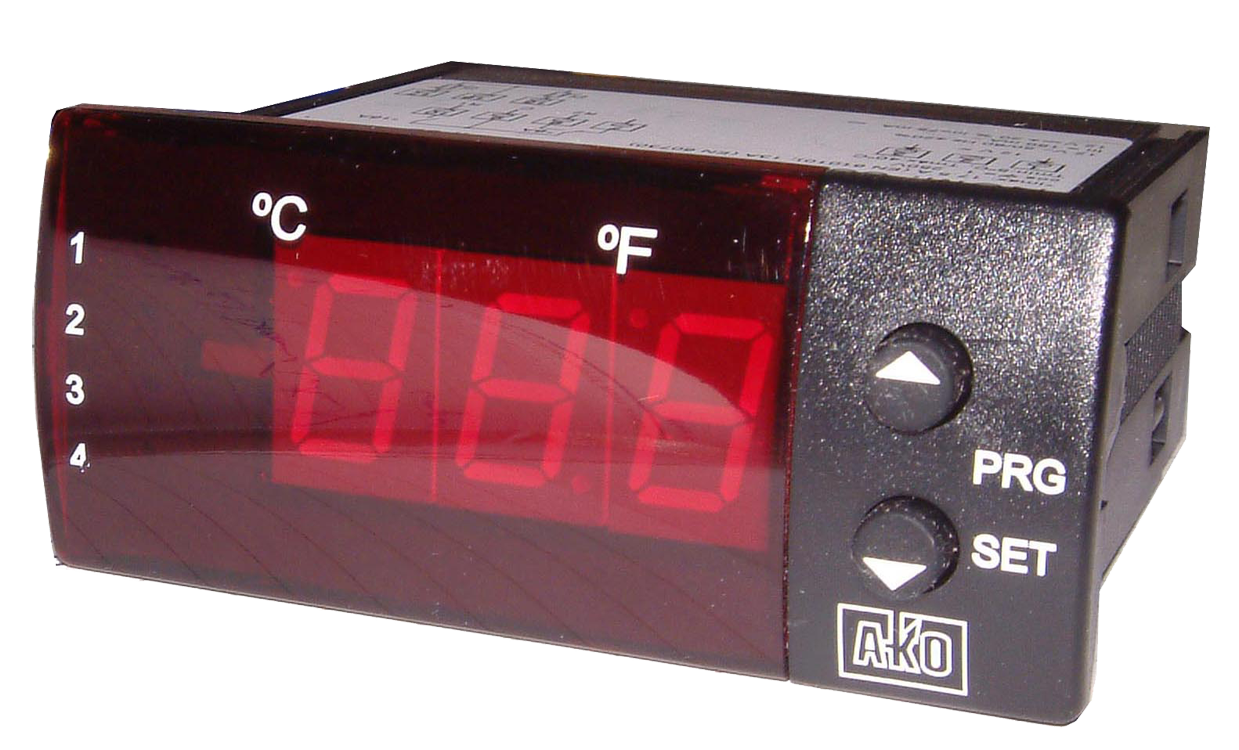

AKO-14723 Differential or two zone thermostat for efficient control

General Description

AKO-14722 / AKO-14723 is a differential thermostat or 2 independant zone thermostat with 2 relay outputs for control temperature using the two supplied ntc sensors.
It may be programmed as a differential thermostat, 2 independent thermostats or a 2 set point thermostat
It can be used to control heaters, heat pumps, fans, pumps, solar heating, ground source heat pumps, etc
It may be set as:-

heating + cooling thermostat

2 stages of heating

2 stages of cooling

Differential thermostat

2 zone heating thermostat, each with independent sensor

2 zone cooling thermostat, each with independent sensor

Sensor
Input is ntc type sensor.
AKO-14723 has an operating range of -50.0/99.9 Deg.C .
With adjustable hysterisis, display to 0.1 and scale in C or F, the result is a versatile accurate thermostat

Size
Standard 34 x 76mm front panel mounting with IP65 gasket. It's bright display makes for easy reading. It can be ordered with a wall box enclosure with pre-cut slot (£15). The box enclosure is approximately 110x110x87mm (hxwxd).

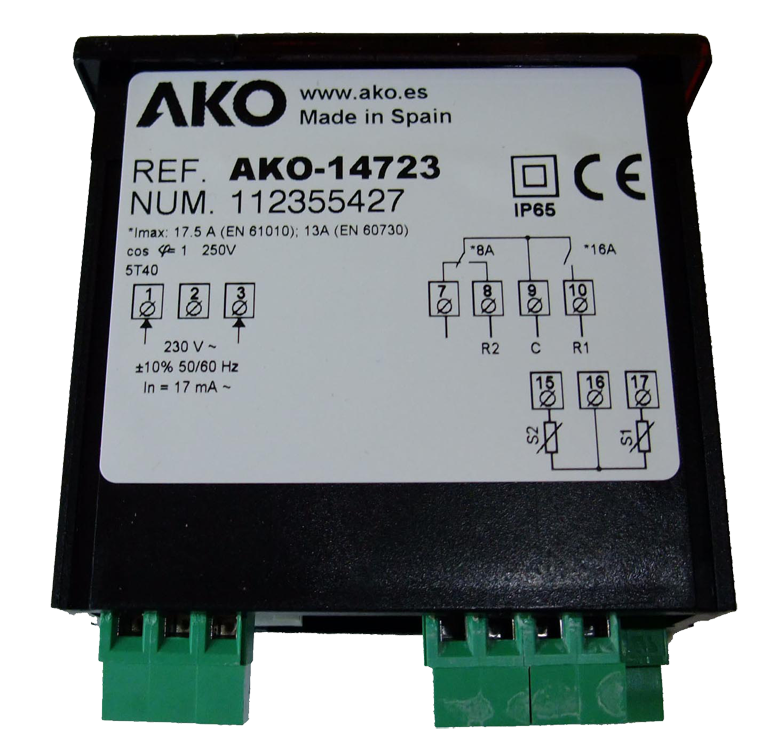

Electrical
Available for 12 Vac/dc (AKO-14722) or 230V (AKO-14723) power supply
2x relay outputs, 16 Amp max. total.
