AKO-D14112 12/24V single stage thermostat for heating or cooling with off cycle defrost

General Description

AKO-D14112 is a digital thermostat with single set point for control of temperature in heating, cooling or refrigeration applications. It accept 12V or 24V AC/DC power supply.

Can be supplied with pre-cut box enclosure for wall mounting.

Can be used to control heaters, chillers, fans, pumps, bottle coolers, fridges, display cabinets, heated food trolley, refrigerated transport vehicles etc.
For refrigeration applications, it has off cycle defrosting.

An ntc thermistor sensor is supplied with a range of
-50.0/99.9 Deg.C or upto 150 Deg.C with a Ptc sensor.

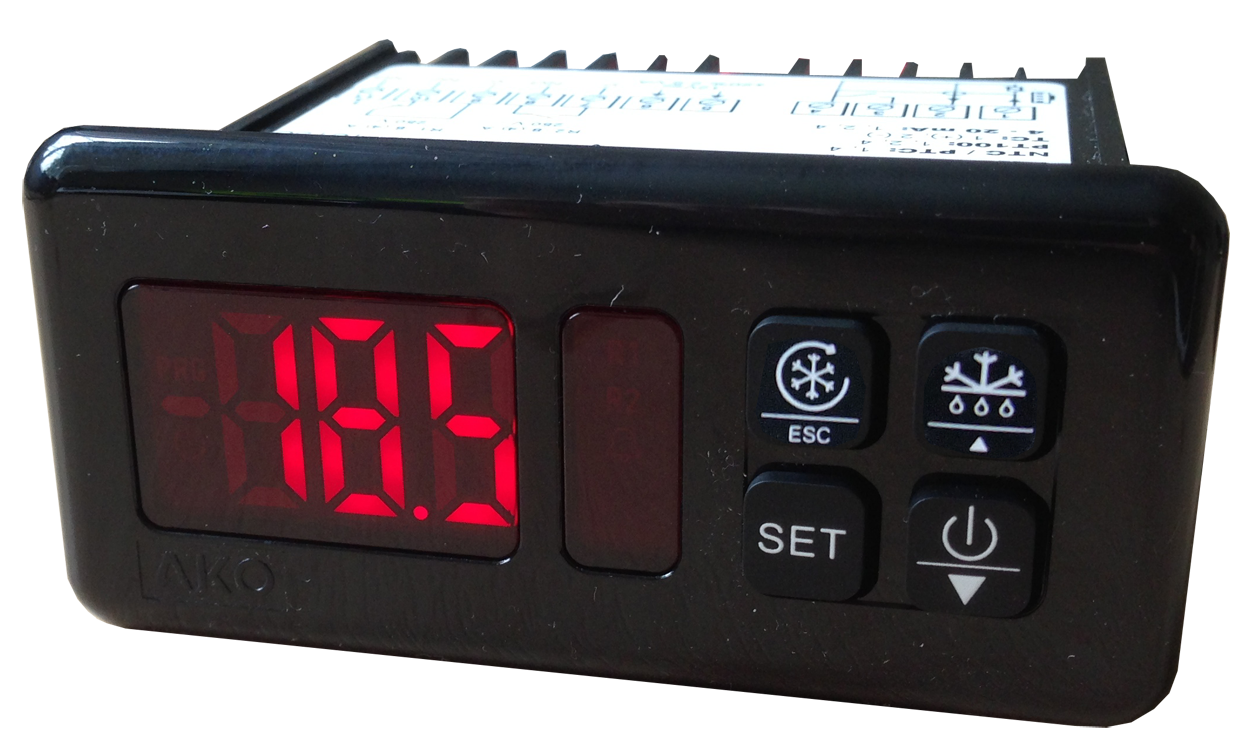

Standard 34 x 76mm front panel mounting with IP65 gasket. It's bright display makes for easy reading.

With 0.1 Degrees resolution, adjustable hysterisis from 0.2 Deg. and scale in C or F, the result is a versatile accurate thermostat.

For 230v please see AKO-D14123.

The AKO-D14112 is AKO's new alternative to the now discontinued AKO-14112.

AKO-D14112 digital thermostat conforms to CE, UL Std.873 Cert. and CAN/CSA Std. C22.2 No. 24-93.

Intertek ETL listed digital thermostat. 4003153.

Applications

Heating or cooling
Refrigeration control
Chiller temperature control
Greenhouse temperature control
Cooler control
Temperature alarm
Off Cycle defrost control
Spray booth temperature control
Poultry house alarm or temperature control
Frost protection
Leisure - swimming pool, saunas or steam rooms temperature control

Technical Specification

Power supply 12/24V AC/DC +/- 20%
Mains frequency 50/60Hz
Power consumption 3W
SPDT Output Relay:
Resistive contact rating 12 Amp 230V
Inductive contact rating 9 Amp 230V
Measuring range (ntc) -50.0/99.9 Deg.C
Measuring range (ptc) -50.0/150 Deg.C
Operating temperature 5/50 Deg.C
Measuring precision (Ambient 25 Deg.C) +/- 1Deg.C typical
Overall dimension 34 x 76 x 70 mm
Panel cut out 28.5 x 70.5 mm
Front panel protection IP65
