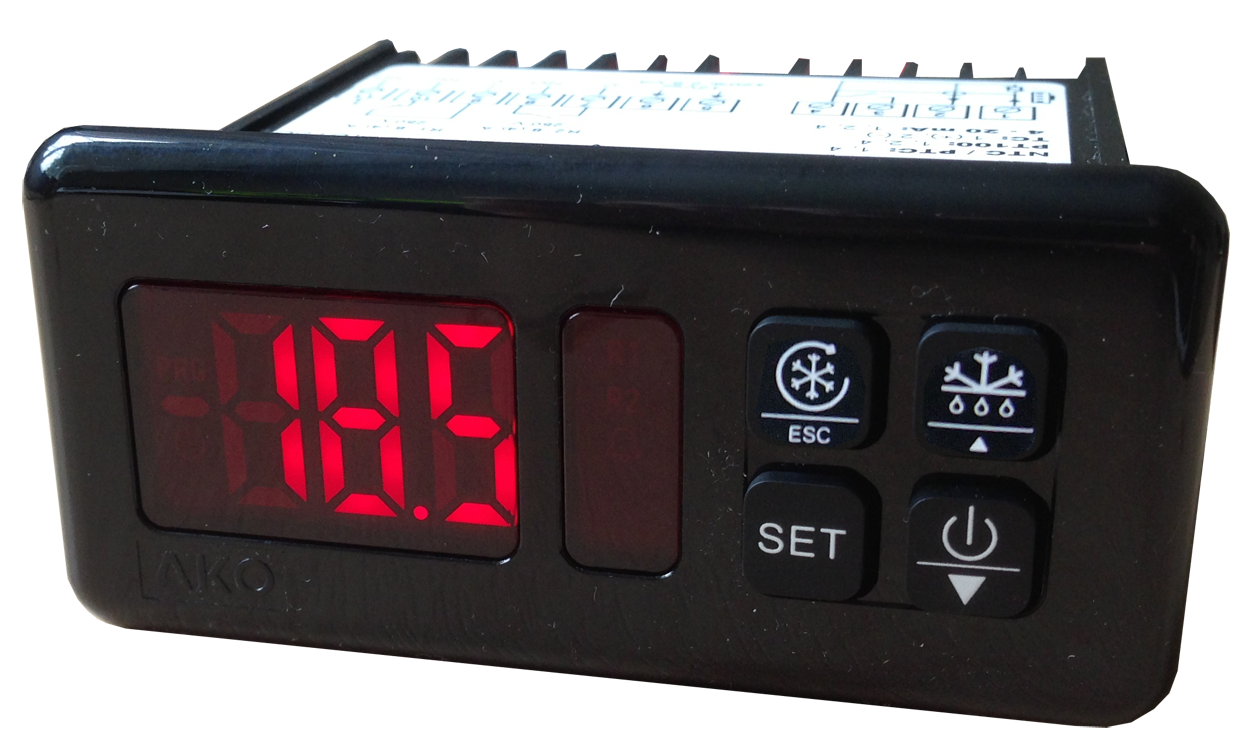

AKO-D14123-2-RC single stage thermostat for heating or cooling with off cycle defrost

General Description

AKO-D14123-2-RC is a digital single relay refrigeration control/thermostat with a communications facility for control of temperature in heating, cooling or refrigeration control applications.
Can be used to control heaters, chillers, fans, pumps, bottle coolers, fridges, display cabinets, heated food trolley etc.
For refrigeration control applications the AKO-D14123-2-RC has off cycle defrosting.

An NTC thermistor sensor is supplied with it giving a range of -50.0/99.9 Deg.C. It can be used with a Ptc sensor to give upto -50.0/150 Deg.C range.

Standard 34 x 76mm front panel mounting with IP65 gasket. It's bright display makes for easy reading.

With 0.1 Degrees resolution, adjustable hysterisis from 0.2 Deg. and scale in Deg. C or F, the result is a versatile accurate thermostat.

AKO-D14123-2-RC digital thermostat conforms to CE, UL Std.873 Cert. and CAN/CSA Std. C22.2 No. 24-93.

Intertek ETL listed digital thermostat. 4003153.

Applications

Heating or cooling
Refrigeration control
Chiller temperature control
Greenhouse temperature control
Cooler control
Temperature alarm
Off Cycle defrost control
Spray booth temperature control
Poultry house alarm or temperature control
Frost protection
Leisure - swimming pool, saunas or steam rooms temperature control

Technical Specification

Power supply 90-230V +/- 10%
Mains frequency 50Hz +/- 20%
Power consumption 3W
SPDT Output Relay:
Resistive contact rating 12 Amp 250V
Inductive contact rating 9 Amp 250V
Measuring range (ntc) -50.0/99.9 Deg.C
Measuring range (ptc) -50.0/150 Deg.C
Operating temperature -10/50 Deg.C
Measuring precision (Ambient 25 Deg.C) +/- 1Deg.C typical
Overall dimension 34 x 76 x 42 mm
Panel cut out 28.5 x 70.5 mm
Front panel protection IP65
