AKO-D14323 230V 3 relay defrost controller

General Description

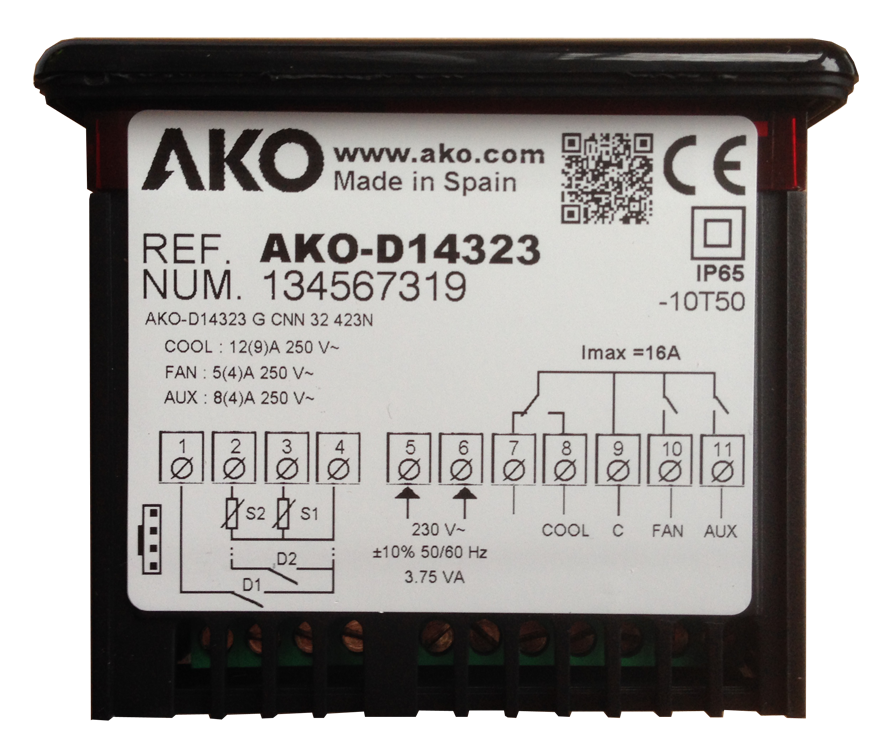

AKO-D14323 is a 3 relay refrigeration control with 2 sensor inputs (1 supplied). Relay outputs for compressor 12(9)A, fan 5(4)A and an auxillary output 8(4)A which is programmable as Defrost, Alarm or Light.

Defrosts programmable by controlling compressor, resistances (or cycle reversal) and fans. A optional probe allows defrosting by temperature. Programmable digital inputs such as door switch, external alarm, remote defrost, energy saving or continuous cycle. Configuration wizard depending on application (8 configurations).

The AKO-D14323-C model has integrated RS-485 communication.

An ntc thermistor sensor is supplied with a range of
-50.0/99.9 Deg.C or -50.0/150 Deg.C with a Ptc sensor.

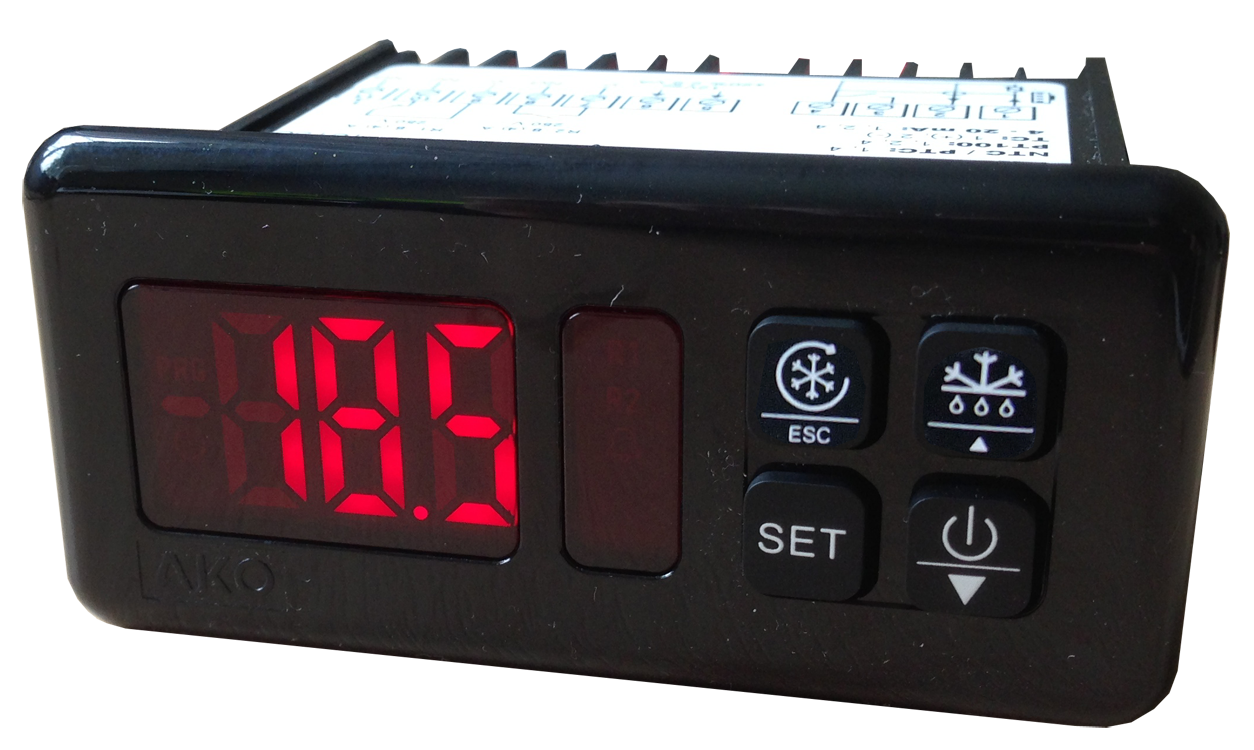

Standard 34 x 76mm front panel mounting with IP65 gasket. It's bright display makes for easy reading.

With 0.1 Degrees resolution, adjustable hysterisis from 0.2 Deg. and scale in C or F, the result is a versatile accurate thermostat.

For 1 relay defrost control please see AKOD14123.

The AKO-D14323 is AKO's new alternative to the now discontinued AKO-14323.

Applications

Refrigeration control
Chiller temperature control
Cooler control
Off Cycle defrost control

Technical Specification

Power supply 230V AC +/- 10%
Mains frequency 50/60Hz
Power consumption 3W
Relay Cool rating 12(9)A 250V
Relay Fan rating 5(4)A 250V
Relay Aux rating 8(4)A 250V
Measuring range (ntc) -50.0/99.9 Deg.C
Measuring range (ptc) -50.0/150 Deg.C
Operating temperature -10/50 Deg.C
Measuring precision (Ambient 25 Deg.C) +/- 1Deg.C typical
Overall dimension 34 x 76 x 70 mm
Panel cut out 28.5 x 70.5 mm
Front panel protection IP65
