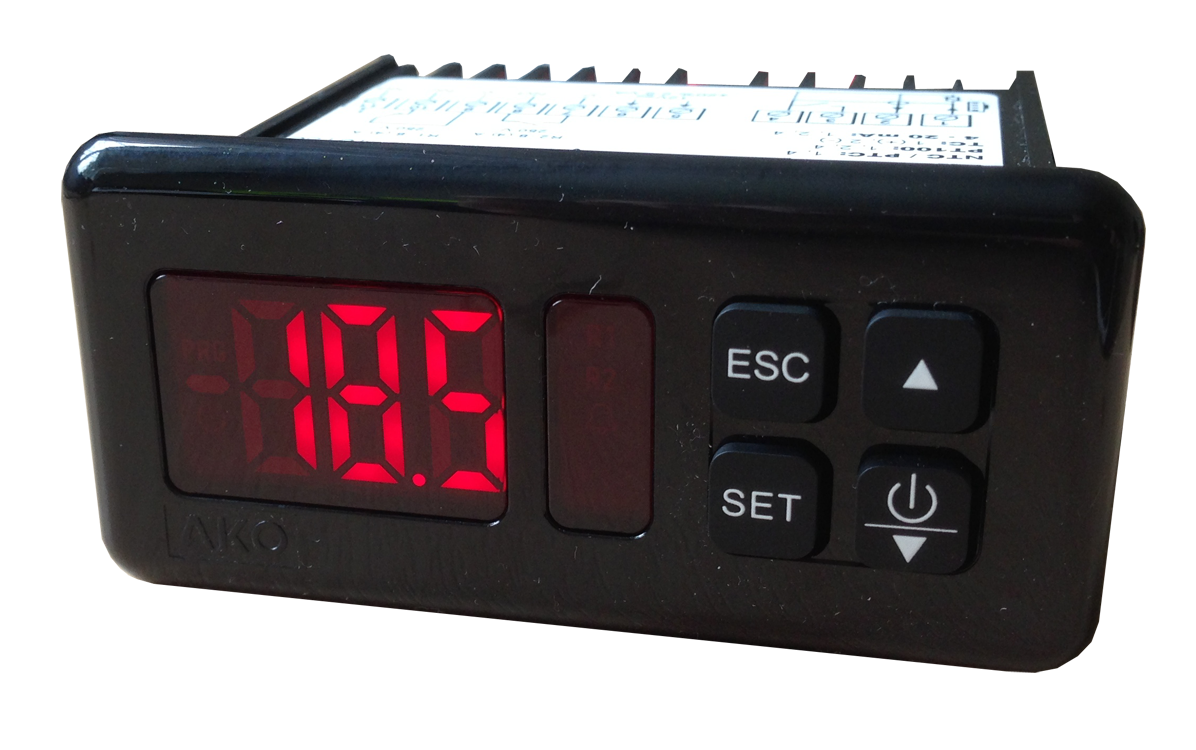

AKO-D14726 230V Two stage programmable controller for temperature, humidity or pressure

General Description

AKO-D14726 is a very versatile controller, with multi input types its adaptable to a range of different applications. It is programmable as a digital thermostat or humidity control with 2 set points/relays and digital input.

The AKO-D14726 digital thermostat is programmable for multiple types of inputs/sensors:

• NTC or PTC thermistors
• PT100
• K or J type thermocouple sensors
• 4-20mA (for humidity sensors)
• Digital input.

It can be used to control heaters, heat pumps, fans, pumps, solar heating, etc

Can be supplied with pre-cut box enclosure for wall mounting.

The AKO-D14726 230V thermostat/humidistat may be set for:-

• Heating and cooling
• 2 stages of heating/humidification
• 2 stages of cooling/dehumidification
• Humidification and dehumidification
• 2 frequently used temperatures, easily switch between the 2 by using the digital input. (Opening and closing 2 terminals with a link)

Operating ranges is dependant on sensor, -50.0/999 Deg.C or 4-20mA input has a range of -999/999 which can be scaled as required.
With adjustable hysterisis, display to 0.1 and scale in C or F, the result is a versatile accurate thermostat

Size:
Standard 34 x 76mm front panel mounting with IP65 gasket. It's bright display makes for easy reading.

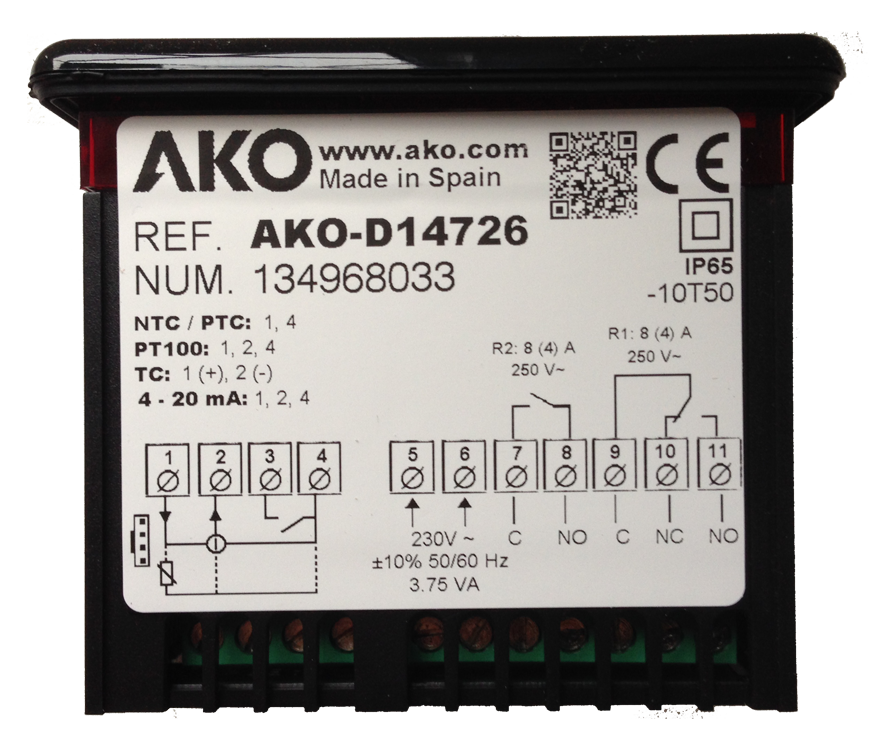

Electrical:
230V  (for 12V see the AKO-D14724)
1x Change-over relay output, 8 (4) Amp
1x Single pole relay output, 8 (4) Amp
