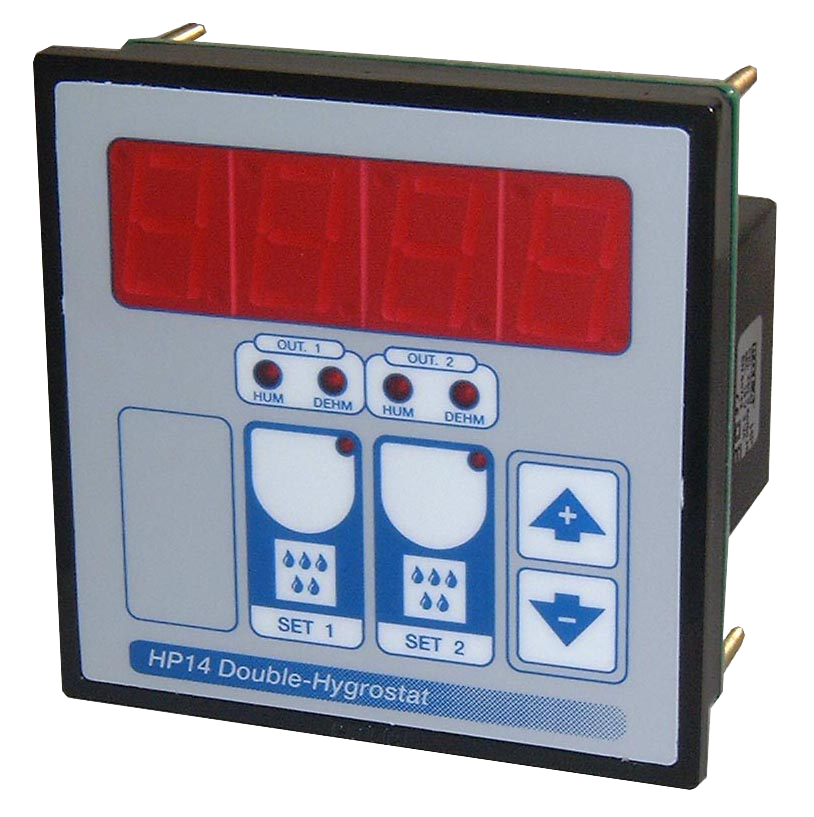

Pola HP14 Two stage humidity controller for electronic sensors

General Description

The Pola HP14 is a Dual set point digital humidistat for monitoring and control of humidity in one zone at 2 levels.
Humidification and Dehumidification may be simultaneously controlled of two levels of either.

The Pola HP14 is not supplied with a sensor but we can supply it with electronic humidity sensors such as Pola RHR, HR03, XH20P, HMD82 and HMW82 with ranges of 10 to 90% are available.

The Pola HALI or HA20s power supply are require to power the sensor.

Available in 96 x 96mm front panel mounting or IP54 surface/wall mount.
Large 20mm display makes for easy reading.
An added feature is the automatic recording of max. and min. humidity for later viewing

Technical Specification

Power supply 220V +/- 10%
Mains frequency 50Hz +/- 20%
Power consumption 4W

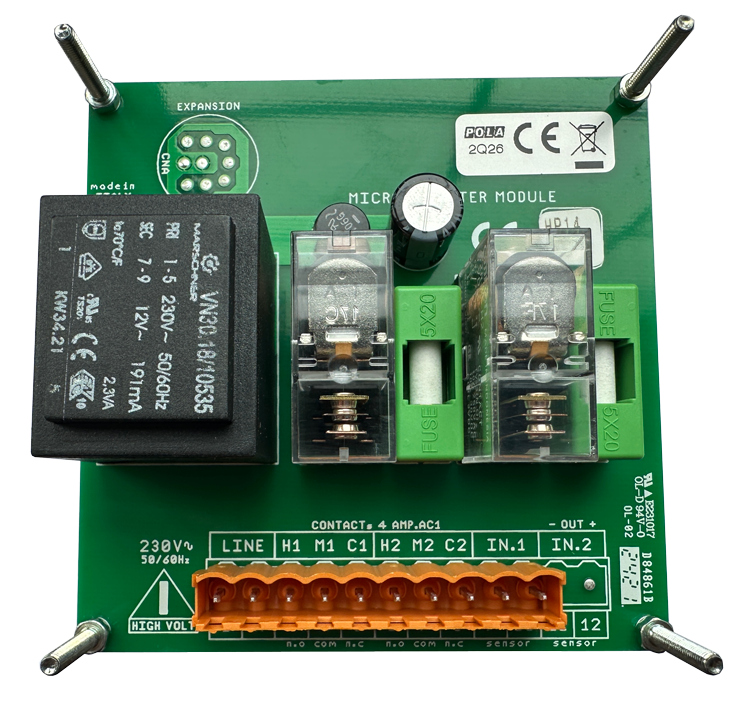

2 x fused SPDT Output Relay:
Resistive contact rating 3Amp 220V
Inductive contact rating 1 Amp 220V
Measuring range 10.0/99.9% rh
Operating temperature -10/70 Deg.C
Overall dimension 96x96x63 mm
Overall dimension (IP54 version) 98x125x75 mm
