HP17

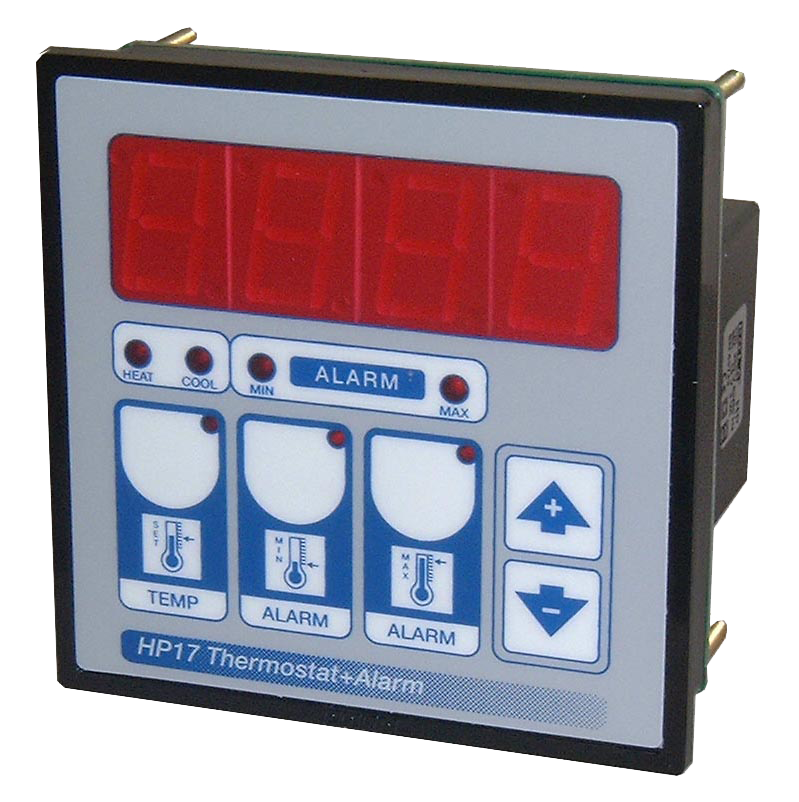

Pola HP17 Single stage thermostat with alarm
- Panel mount | 96x96mm
- Large digital display
- NTC (-50/100°C)
- 2x 4(1)A SPDT relay
£237.46 £252.46Price range: £197.88£237.46 through £210.38£252.46
Excl. VAT & Incl. VAT
In Stock - Usually Delivered in 1-2 Days
Need Technical Support?
With 35 years of experience, we can help you select the right solution for your application and provide installation guidance.
General Description
The Pola HP17 is a single set point digital thermostat with alarm for control of temperature with additional high and low level alarm feature.
Alarm values may be set in program to prevent unauthorised adjustment.
A Pola SX thermistor sensor is supplied with a range of -50.0/115.0 Deg.C or -58.0/239.0 Deg.F.
If you require a spare Pola SX sensor please click here.
Housed in 96 x 96mm front panel mounting or IP54 surface/wall mounting.
Min. and Max. temperatures are stored for later viewing.
Large 20mm display with 0.1 Degrees resolution, adjustable hysterisis from 0.2 Deg. and scale in C or F, gives a versatile accurate thermostat with over and under temperature protection.
Technical Specification
Power supply 230V +/- 10%
Mains frequency 50Hz +/- 20%
Power consumption 4W

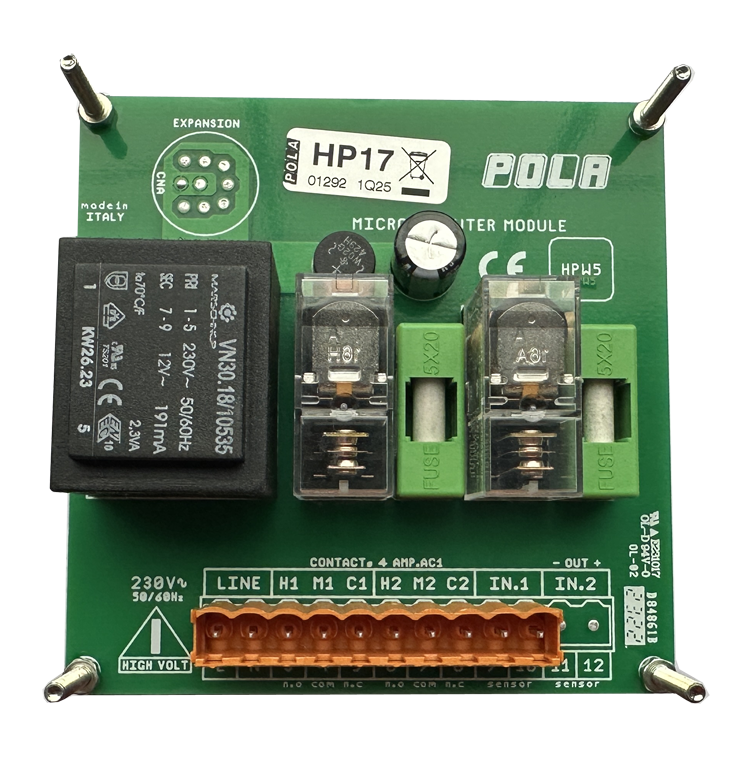

2 x SPDT Output Relay:
Resistive contact rating 3 Amp 230V - AC1
Inductive contact rating 1 Amp 230V - AC3
Measuring range -50.0/115.0 Deg.C
Operating temperature -10/70 Deg.C
Measuring precision (Ambient 25 Deg.C) 0.1 Deg.C typical
Overall dimension 96 x 96 x 63 mm
Overall dimension (IP54 version) 98 x 125 x 75 mm
