Pola HX44 - Multizone temperature controller (8-32 zones)

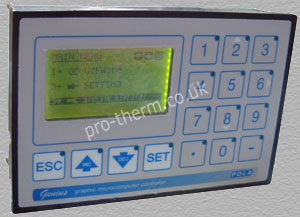

HX44 Control

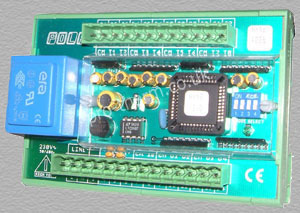

HXNE Multi-sensor input module

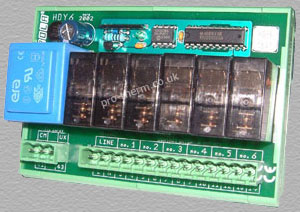

HDY6 6 Relay ouput module



HX44 has the capability to individually monitor, record and control up to 32 zones each with independent settings. Temperatures for each zone are recorded and logged for later viewing while controlling via HDY6 output relays, heating, high alarm and low alarm.
Different temperature profiles may be applied to each zone.
Different alarm types may be applied to each zone.
Different recording intervals may be set for each zone.
Continuous single temperature setting or time/temperature programming for each zone.
Ability to replicate most functions on PC software. (Recording, settings etc)

Range -50/600 oC.
32x Pt1000 or ntc sensor inputs available
0.1 Degrees display to 99.9 Deg.C
Adjustable differentials from 0.1 Deg.C
Heating and/or cooling
PC software available
