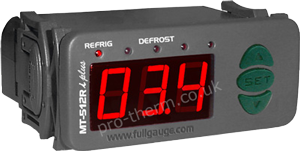

Full Gauge MT-512ri Plus - digital thermostat with remote connectivity by iPhone, iPad, Android devices or PC

Features: 1 Relay - Heating and/or cooling plus alarm and cycle timer Remote management with Sitrad software (with Conv32) Dual voltage 115V or 230v NTC: -50/105 Deg C or PT100: -99/300 Deg C Click here to download PDF instructions

- Free software for remote management/connectivity from PC, iPhone, iPad and Android devices with addition of Conv32.

or download latest version here.

*Prices exclude delivery (Choose quantity at checkout, please call for higher quantity and oem discounts)

Select option

MT512ri Plus, inc VAT £69.19 GBP MT512ri Plus supplied with Conv32, inc VAT £149.91 GBP

Downloadable instructions:

General Description

Full Gauge MT-512 ri Plus is single relay (for heating or refrigeration) digital thermostat with the option of remote (via the internet) management from PC, iPhone, iPad and Android devices with the addition of "Conv32" serial to USB converter and a PC with internet access. For refrigeration it has off cycle defrost.

For 3 relay version please see the MT-543 ri Plus.

It has a serial communication for connection to Sitrad remote management software which is available for PC, iPhone, iPad and Android devices. Please see Sitrad dashboard below.

The screenshot below show how the parameters for the chosen control can be viewed and then altered if necessary for a local or remote location.

Measuring range of standard NTC sensor is -50.0/105 Deg.C. If used with a PT100 sensor range is extended to -99.9/300 Deg.C.

For all these features plus data logging please see Full gauge MT-512 ri Log.

Standard 34 x 76mm front panel mounting with IP65 gasket. It's bright display makes for easy reading.

With 0.1 Degrees resolution, adjustable hysterisis from 0.2 Deg. and scale in Deg. C or F, the result is a versatile accurate thermostat.

For 12/24v please see contact us.

Technical Specification

Power supply                                         115V/230V +/- 10%
Mains frequency                                     50-60Hz
Power consumption                                3W
SPST Output Relay:
Resistive contact rating                          5 Amp 250V (per output)
Inductive contact rating                          3 Amp 250V (per output)
Measuring range standard NTC               -50.0/105 Deg.C
Measuring range PT100 sensor                -99.9/300 Deg.C
Operating temperature                           0/50 Deg.C
Measuring precision (Ambient 25 Deg.C)  +/- 1Deg.C typical
Overall dimension                                  34 x 76 x 77 mm
Panel cut out                                        29 x 71 mm
Front panel protection                            IP65

Applications

Heating or cooling with remote management
Refrigeration control with remote management
Chiller temperature control with remote management
Greenhouse temperature control with remote management
Cooler control with remote management
Temperature alarm with remote management
Off Cycle defrost control with remote management
Spray booth temperature control with remote management
Poultry house alarm or temperature control with remote management
Leisure - swimming pool, saunas or steam rooms temperature control with remote management
