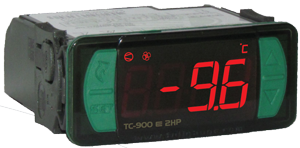

Full Gauge TC-900E 2HP - 3 relay (2HP) control/thermostat for cooling (compressor) or heating. 2x Sensors included.



Full Gauge MT-512E 2HP digital thermostat



*Prices exclude delivery (Choose quantity at checkout, please call for higher quantity and oem discounts)

Downloadable instructions: pdf

General Description

Full Gauge TC-900E 2HP is a digital 3 relay refrigeration control/thermostat which automates the defrosting process according to the needs of the facilities (intelligent defrosting). The temperature control has a normal setpoint and an economical setpoint, in addition to the quick freezing functionality and alarm functions indicating that the door is open. Its main feature is to have a powerful relay to drive compressors up to 2HP and the defrost output has a current capacity of 10 Amp.

Standard 34 x 76mm front panel mounting with IP65 gasket. It's bright display makes for easy reading.

With 0.1 Degrees resolution, adjustable hysterisis from 0.2 Deg. and scale in Deg. C or F, the result is a versatile accurate thermostat.

For 12/24v please see contact us.

Serial programming function.

For 1 relay 2HP thermostat see MT-512E 2HP.

Applications

Refrigeration control
Freezer control
Walk in freezer control
Chiller temperature control
Cooler control

Technical Specification

Power supply���������������������������������������� 115V/230V +/- 10%
Mains frequency������������������������������������ 50-60Hz
Power consumption������������������������������� 3W
SPST Output Relay:
Compressor contact rating�������������������� 12(8) 2HP Amp 240V
Defrost contact rating                            10 1/4 HP Amp 240V
Fan contact rating                                  5 (3) Amp 240V ���������������������� ��
Measuring range�standard���������������������-50.0/105 Deg.C
Operating temperature������������������������ �-10/50 Deg.C
Measuring precision (Ambient 25 Deg.C)� +/- 1Deg.C typical
Overall dimension��������������������������������� 34 x 76 x 77 mm
Panel cut out ��������� ���������������������������� 29 x 71 mm
Front panel protection ���������������������������IP65
