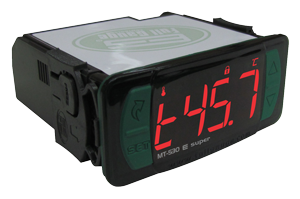

Full Gauge MT-530E super - 3 relay combined temperature and humidty control with cycle timer or alarm and remote connectivity (optional).

Full Gauge MT-530 E super combined temperature and humity control with alarm or cycle timer with Sitrad remote serial connectivity.Full Gauge SB56 Combined temperature and humidity sensor



Full Gauge MT-530 super combined temperature and humity control with alarm or cycle timer with Sitrad remote serial connectivity.

Features:

  • 3 Relays - Temperature and humidity control plus alarm or cycle timer

  • Remote management with Sitrad software (with Conv32)

  • Dual voltage 115V or 230v

  • Includes combined temperature and humidity sensor.

  • Click here to download PDF instructions

*Prices exclude delivery (Choose quantity at checkout, please call for higher quantity and oem discounts)

  Model Range Inputs Price ex.vat Info
{column0} {column1} {column2} {column3} {column4} {column5}

Select option

Downloadable instructions: pdf

General Description

Full Gauge MT-530 super is a 3 relay thermostat and humidity control with cycle timer or alarm and serial connectivity for remote management from PC, iPhone, iPad and Android devices ("Conv32" serial to USB converter required).

The MT-530 super has three relays, relay is one is for temperature control, relay 2 for humidity control and relay 3 can be configured for:

It also features an internal audible alarm (buzzer).

It has a serial communication for connection to Sitrad remote management software which is available for PC, iPhone, iPad and Android devices. Please see Sitrad dashboard below operating a MT-543Ri plus three stage thermostat.

Sitrad - Free software for remote management/connectivity from PC, iPhone, iPad and Android devices with addition of Conv32.

app store or download latest version here.

Sitrad

Sitrad remote management software for Full Gauge MT-543 ri Plus

The screenshot below show how the parameters for the chosen control can be viewed and then altered if necessary for a local or remote location.

Sitrad remote management software for Full Gauge MT-543 ri Plus

Measuring range of standard sensor is -10.0/70 Deg.C and 10/85% RH.

Standard 34 x 76mm front panel mounting with IP65 gasket. It's bright display makes for easy reading.

With 0.1 Degrees resolution, adjustable hysterisis from 0.1 Deg. and scale in Deg. C or F, the result is a versatile accurate thermostat.

For 12/24v supply MT-530 super combined thermostat and humidty control please see contact us.

Technical Specification

Power supply                                         115V/230V +/- 10%
Mains frequency                                     50-60Hz
Power consumption                                3W
SPST Output Relay:
Resistive contact rating                          5 Amp 250V (per output)
Inductive contact rating                          3 Amp 250V (per output)
Measuring range termperature               -10.0/70 Deg.C
Measuring range humidity                      10/85% RH
Operating temperature                           0/50 Deg.C
Measuring precision (Ambient 25 Deg.C)  +/- 1Deg.C typical
Overall dimension                                  34 x 76 x 77 mm
Panel cut out                                        29 x 71 mm
Front panel protection                            IP65

Applications

Heating or cooling with remote management
Refrigeration control with remote management
Chiller temperature control with remote management
Greenhouse temperature control with remote management
Cooler control with remote management
Temperature alarm with remote management
Spray booth temperature control with remote management
Poultry house alarm or temperature control with remote management
Leisure - swimming pool, saunas or steam rooms temperature control with remote management
Timber and log drying applications
