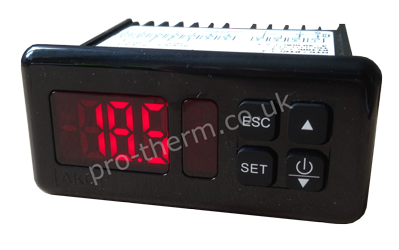

AKO-D14724 - 12V 2 relay/set point high temperature digital thermostat programmable input for J/K type thermocouple, PT100 input, 4-20mA, thermistor or digital input

(230V - see AKO-D14726)

(To wall/surface mount please see pre-cut box enclosure)

Downloadable instructions:

*Prices exclude delivery (Choose quantity at checkout, please call for 5+ discount)

General Description

AKO-D14724 is a very versatile controller, with multi input types its adaptable to a range of different applications. It is programmable as a digital thermostat or humidity control with 2 set points/relays and digital input.

The AKO-D14724 digital thermostat is programmable for multiple types of inputs/sensors:

• ntc or ptc thermistors
• Pt100
• K or J type thermocouple sensors
• 4-20mA (for humidity sensors)
• Digital input.

It can be used to control heaters, heat pumps, fans, pumps, solar heating,  etc

The AKO-D14724 12V thermostat/humidistat may be set for:-
Heating and cooling
2 stages of heating/humidification
2 stages of cooling/dehumidification
Humidification and dehumidification
2 frequently used temperatures, easily switch between the 2 by using the digital input. (Opening and closing 2 terminals with a link)

AKO-D14724 Sensor
Input is programmable for either ntc, Ptc, Pt100, K or J thermocouple type or 4-20mA.
Operating ranges is dependant on sensor, -50.0/999 Deg.C or 4-20mA input has a range of -999/999 which can be scaled as required.
With adjustable hysterisis, display to 0.1 and scale in C or F, the result is a versatile accurate thermostat

Size
Standard 34 x 76mm front panel mounting with IP65 gasket. It's bright display makes for easy reading.

Electrical
12 Vac/dc
1x Change-over relay output, 8 (4) Amp
1x Single pole relay output, 8 (4) Amp
