Filsa CD B1 (dust) - ATEX (EX) rated diaphragm/membrane level switch.

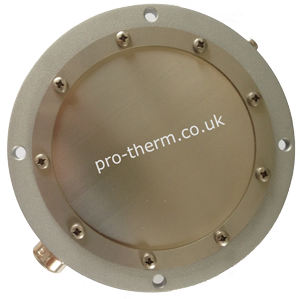

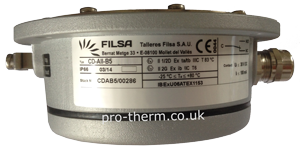

Filsa CD B1 ATEX EX rated membrane level switchFilsa CD B1 ATEX EX rated side

Downloadable full specification: pdf

*Prices exclude delivery

Price (ex. VAT)
{column4}

General Description

The Filsa CD B1 (dust) ATEX EX rated level switch for level control in bulk/grain storage bins. The CD B1 is certificated for use in potentially explosive Dust atmospheres and hazardous areas.

Please contact us for a quotation for the CD B1 ATEX (EX) rated membrane switch.

Membrane level switches

The diagram below illustrates how the Filsa CD level switch can be positioned to control a filling auger. By positioning switches at high and low limit levels the auger is switched on/off at predetermined levels.

Single switches can be used to provide a high level limiter or alarm.

Specification

Filsa CD B3 Dust ATEX 1/2D Ex ta/tb IIIC T83°C
Case and cover - Aluminiuml
Membrane - Stainless steel
Operating temperature - -25 to +80C.
Actuation pressure - 150 ... 2.000 g adjustable.
Density of the product - 0.3 t/m3 ... 2.5 t/m3
Switch - 4 (2)A / 250 V AC
Cable gland - M20x1.5
Protection - IP65

Applications include:

- Grain hopper/silo level switch

- Wood pellet hopper/silo level switch

- Grain drier level switch

- Feed bin level switch
