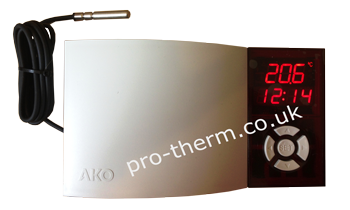

AKO-15724 - combined temperature and humidity logger/monitor/recorder and alarm - 2 channels.

SD/SDHC card, USB reader and 1 temperature sensor included

AKO15724 2 channel data logger

*Prices exclude delivery (Choose quantity at checkout, please call for 5+ discount)

Price ex.VAT
{column4}

Downloadable instructions: pdf

General Information

AKO-15724 is a 2 channel data logger for temperature (using ntc sensors), humidity (via 4-20mA input), pressure (using 4-20mA input) or any other source which provides a 4-20mA signal.

It is configurable for 1 or 2 inputs, each input is configerable for:

Logging intervals can be set for 1, 5, 15, 30 or 60 minutes.

Data is downloaded from the logger using a SD/SDHC memory card (4gb SDHC card included) via the slot in the bottom of the unit. The data is recorded as a csv file which can be opened/imported in Excel.

2 Channel raw data - Click the icon to see the raw data from the AKO15724 imported to excel, for indoor and outdoor temperature monitoring (2 ntc inputs)

2 Channel raw data - Click the icon to see a chart produced using the data

The AKO-15724 also has an alarm relay and acoustic alarm.

Applications:

Cold store temperature monitoring/logging
Fridge temperature monitoring/logging
Crop/grain temperature monitoring/logging
Vegetable store temperature monitoring/logging
General temperature and humidity monitoring/logging
